Workflow - Return Portal Pro

This section explains how to connect to the Seven Senders API when using Return Portal Pro together with the Seven Senders Delivery Service. It includes all required API workflows to support product catalogues, order items, and return creation in your return portal. The Return Portal Pro enables customers to select specific items from an order for return. To support this workflow, you must push product master data, order data, order items, and shipment information through the API. Once this data is available, the Return Portal Pro will automatically allow customers to create returns and generate return labels.

Before calling the API, you must be authorized and have access to your API token.

Step 1: Create Your Product Library

Before sending orders, you must upload your item master data so that products display correctly in the return portal.

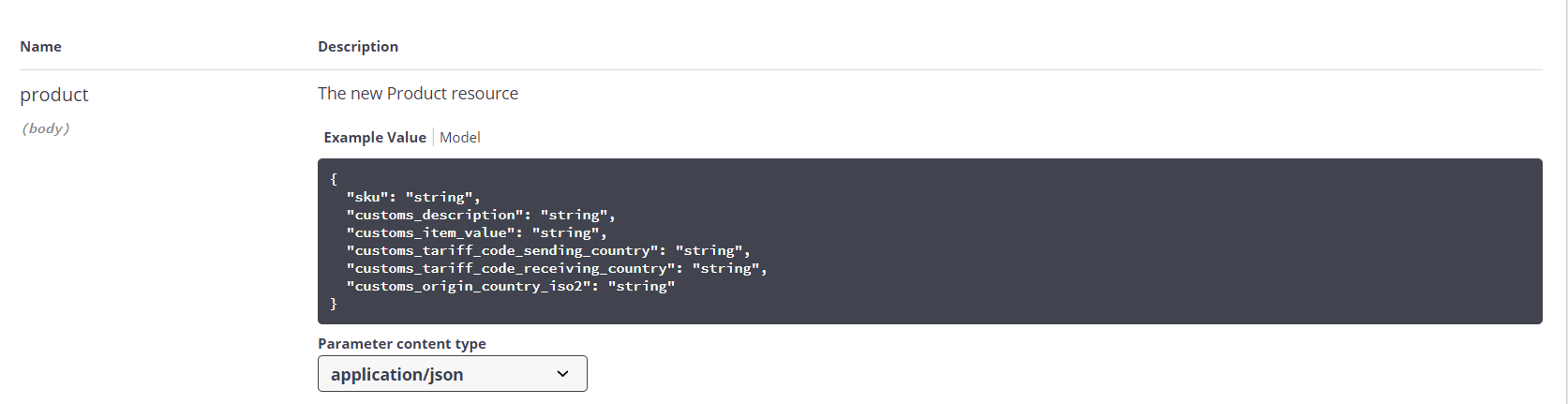

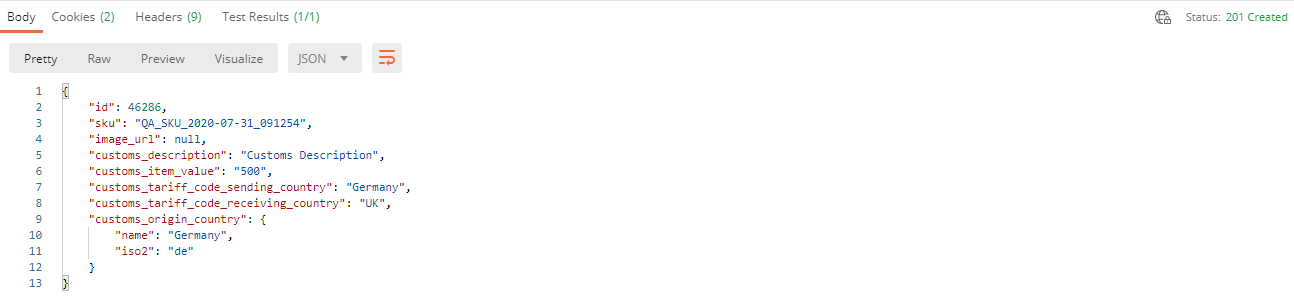

POST /Product: Create a product by supplying SKU, customs data (if applicable), and other attributes.
PUT /ProductImage: Upload the product image in Base64 format so it displays in the portal.

Step 2: Create an Order

Create an order using POST /Order. This represents the order your customer placed in your shop.

The order_id is required for log-in.

Optionally include order localisation (URL and language) for portal mapping.

Available Languages

bg; cs; da; de; el; en; es; et; fi; fr; ga; hr; hu; it; lt; lv; mt; pl; pt; ro; ru; sk; sl; sv & uk

Parameter Reference

Field	Type	Format / Example	Required	Description
order_id	string	`"QA_order_2020_07_31_091340"`	Yes	Unique order reference in your system.
order_url	string (URL)	`"https://shop.example.com"`	Recommended	URL of the shop where the order was placed. Used for localization mapping.
order_date	string	`"2020-07-31T07:00:00+00:00"`	Yes	Order creation timestamp in ISO-8601 format (UTC recommended).
boarding_complete	boolean	`false`	No	Indicates whether all shipments of a multi-parcel order have been imported.
language	array[string]	`["en"]`	Recommended	Customer language or shop language. Required if email/SMS notifications are triggered.
order_tags	object	`{"tag_1": "test"}`	No	Custom tags or properties for order segmentation and filtering.
promised_delivery_date	string	`"2020-08-05T07:00:00+00:00"`	Recommended	Promised delivery timestamp communicated to the customer (ISO-8601).

Example JSON Payload


{
  "order_id": "QA_order_2020_07_31_091340",
  "order_url": "https://shop.example.com",
  "order_date": "2020-07-31T07:00:00+00:00",
  "boarding_complete": false,
  "language": ["en"],
  "order_tags": {
    "tag_1": "test"
  },
  "promised_delivery_date": "2020-08-05T07:00:00+00:00"
}

Step 3: Create Order Items

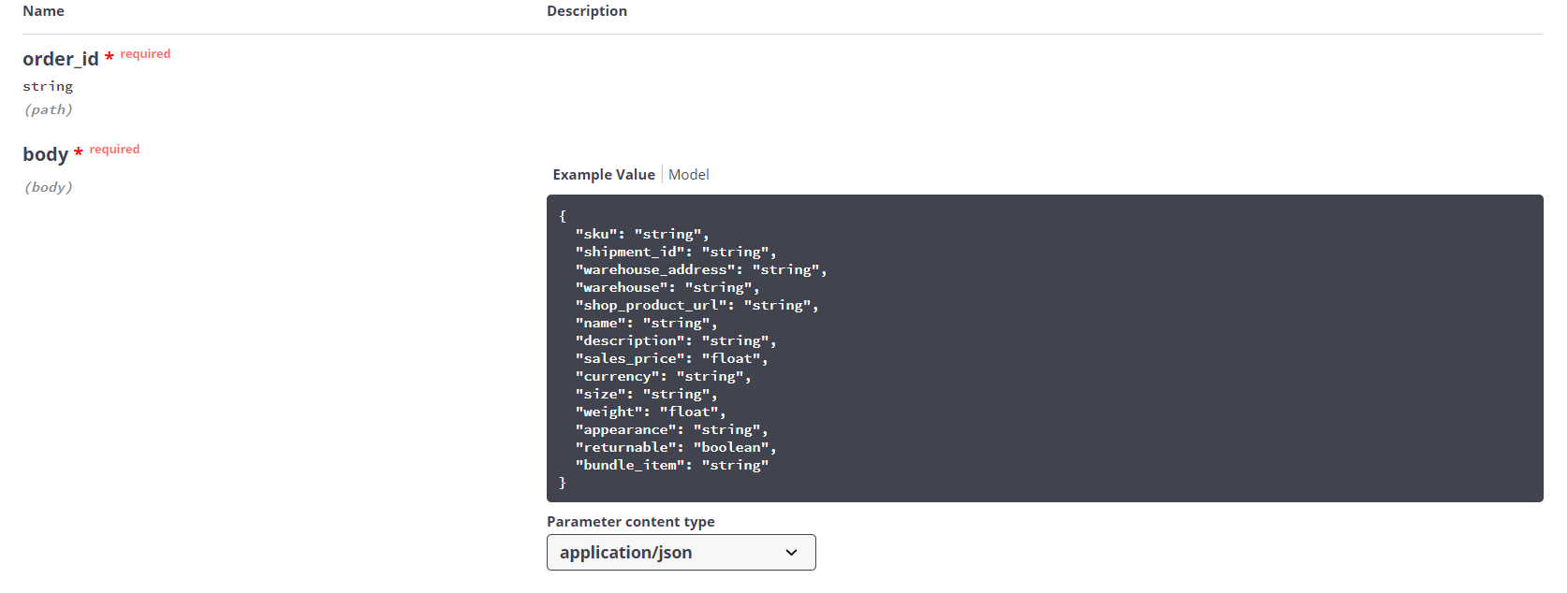

Send each item in the order using POST /OrderItem. This associates the item SKU and order with the customer’s order and drives the item-level return selection in the portal.

Parameter Reference

Field	Type	Format / Example	Required	Used in Consumer Return Portal	Description
order_id	string	`"QA_order_2020_07_31_091340"`	Yes	Yes	Unique order reference used to associate the item with an order.
sku	string	`"QA_SKU_2020-07-31_091254"`	Yes	No	Unique product identifier (SKU).
shipment_id	string	`"123456789"`	No	No	Shipment identifier returned by the Create Shipment API.
warehouse_address	string	`"Schleißheimer Str. 506\n80933 München"`	No	No	Warehouse address handling the return.
warehouse	string	`"Warehouse 1"`	No	No	Warehouse name.
shop_product_url	string (URL)	`"https://www.sevensenders.com"`	No	No	URL to redirect the consumer to the original product page.
name	string	`"Shirt"`	Yes	Yes	Product name displayed in the return portal (language-specific).
description	string	`"Shirt description"`	Yes	Yes	Short product description shown in the portal (language-specific).
sales_price	number (float)	`19.99`	Yes	Yes	Sales price paid by the customer.
currency	string (ISO 4217)	`"EUR"`	Yes	Yes	Currency code of the sales price.
size	string	`"Medium"`	Yes	Yes	Product size.
weight	number (float)	`5.0`	Yes	No	Weight in kilograms.
appearance	string	`"White"`	No	No	Attribute describing the appearance (e.g., color).
returnable	boolean	`true`	Yes	Yes	Indicates whether the item can be selected for return.
bundle_item	string	`"3456"`	No	No	Identifier grouping multiple items into a return bundle. All items in the bundle must be returned together.

Example JSON Payload

{
  "order_id": "QA_order_2020_07_31_091340",
  "sku": "QA_SKU_2020-07-31_091254",
  "shipment_id": "123456789",
  "warehouse_address": "Schleißheimer Str. 506\n80933 München",
  "warehouse": "Warehouse 1",
  "shop_product_url": "https://www.sevensenders.com",
  "name": "Shirt",
  "description": "Shirt description",
  "sales_price": 19.99,
  "currency": "EUR",
  "size": "Medium",
  "weight": 5.0,
  "appearance": "White",
  "returnable": true,
  "bundle_item": "3456"
}

Step 4: Create a Shipment

Once order items are created, send the related shipment using POST /Shipment. The tracking_code and customer_email fields are required, order_id links the shipment to the order.

Step 5: Update Order Items With Shipment ID (Optional)

You can link order items to the shipment record used for delivery. This step helps ensure data completeness but is not strictly required for the return portal to function (PUT /OrderItem).

Step 6: Push Shipment Events

To track the return process end-to-end, send shipment events via POST /ShipmentEvent. Recommended events:

Refunded – when the refund has been issued
Returned to warehouse – when the return parcel has arrived at the final warehouse destination
